Batch controller with two stage control and receipt printer driver

-------------------

Manufacturer: Fluidwell(USA)

Model:  F132 Series

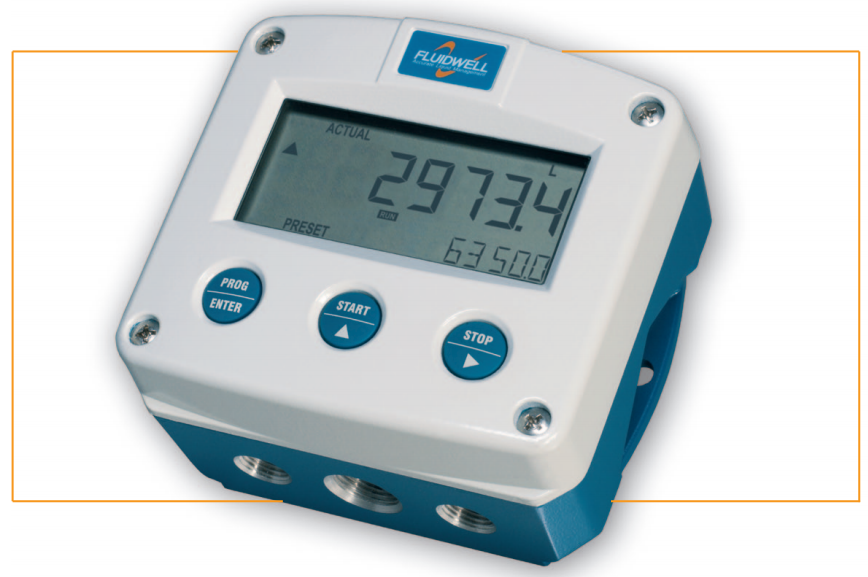

            The F132 is a straight forward two stage batch controller with the unique function to send a “print receipt” command to a printer after every batch. The operator can easily enter a batch quantity, send an extra “print receipt” command or execute repeating batches. During the batch, the preset value is displayed as well as the batched (or remaining) quantity including the units of measurement. The automatic self- learning overrun correction ensures an accurate result after each batch. A wide selection of options further enhances the capabilities of this model, wich includes Intrinsic Safety.

Features

• Receipt printing function after each batch.
• Large display shows preset value and running batch value simultaneously.
• Easy operation to enter a batch value, print an extra receipt and to control the process.
• Count-up and count-down function available.
• Self-learning overrun correction.
• No-flow monitoring.
• Selectable on-screen engineering units; volumetric or mass.

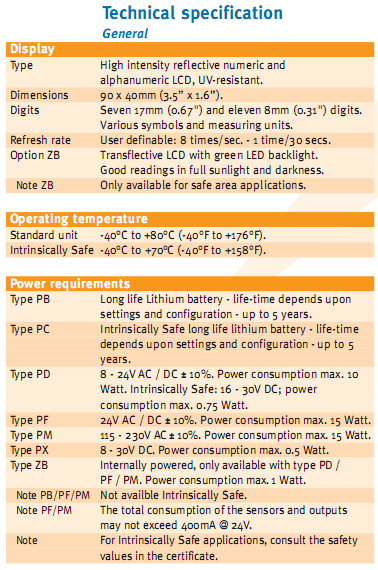

• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Lithium battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

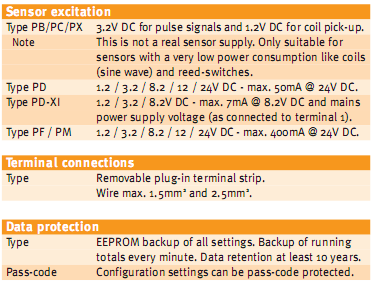

• Sensor supply 3.2 / 8.2 / 12 / 24V DC.

---------------------------------------------------
