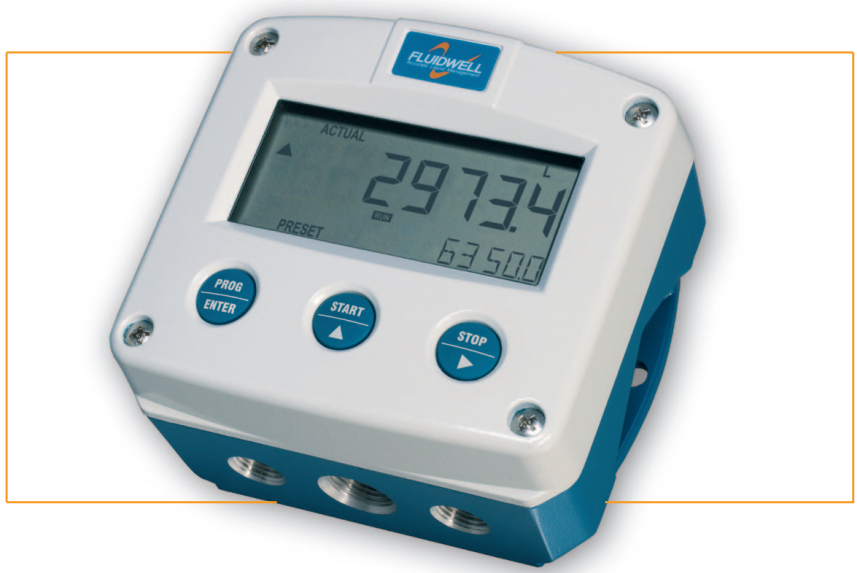

Batch controller with two stage control and analog output in relation to the batch process

-------------------

Manufacturer: Fluidwell(USA)

Model:  F136 Series

            The F136 offers in addition to the standard functions an analog output signal in relation to the batch proces. This to transmit the course of the process.
            The operator can enter a batch quantity easily or execute repeating batches. During the batch, the preset value is displayed as well as the batched (or remaining) quantity. The automatic self-learning overrun correction ensures an accurate result after each batch

Features

• Large display shows preset value and running batch value simultaneously.
• The analog output value reflects the course of the batch process; fourteen different profiles can be selected.
• Self-learning overrun correction.
• Easy operation to enter a batch value and to control the process.
• Count-up and count-down function available.
• Ability to process all types of flowmeter signals.

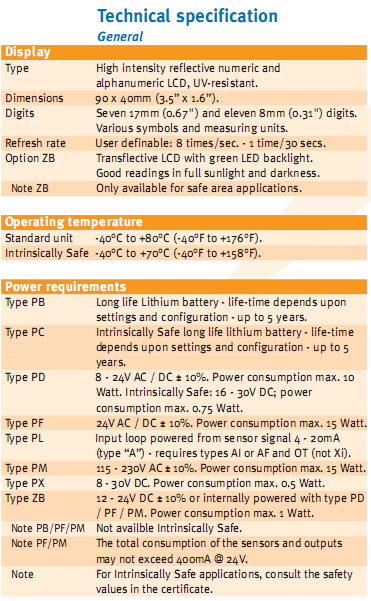

• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

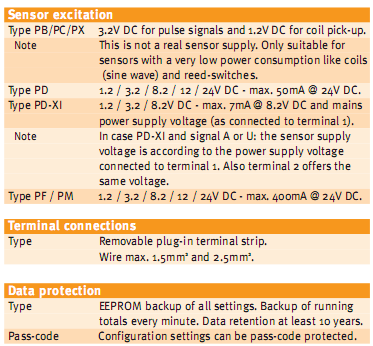

• Sensor supply 3.2 / 8.2 / 12 / 24V DC.

---------------------------------------------------
