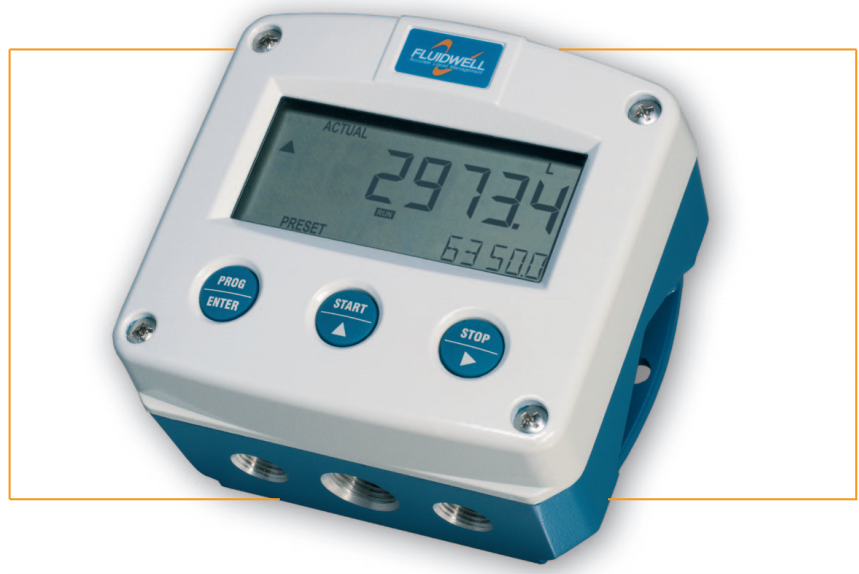

Batch controller with two stage control / pulse output

-------------------

Manufacturer: Fluidwell(USA)

Model:  F130 Series

            The F130 is a straight forward two-stage Batch controller offering exactly what is required for many applications. The operator can enter a batch quantity easily or execute repeating batches. During the batch, the preset value is displayed as well as the batched (or remaining) quantity and the units of measurement. The automatic self-learning overrun correction ensures an accurate result after each batch.  A wide selection of options further enhances the capabilities of this model, which includes Intrin-sic Safety and full Modbus communication.

Features

• Large display shows preset value and running batch value simultaneously.
• Self-learning overrun correction.
• Easy operation to enter a batch value and to control the process.
• Count-up and count-down function available.
• Selectable on-screen engineering units; volumetric or mass.
• Ability to process all types of flowmeter signals.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
• Sensor supply 3.2 / 8.2 / 12 / 24V DC.
• No-flow monitoring.

---------------------------------------------------
