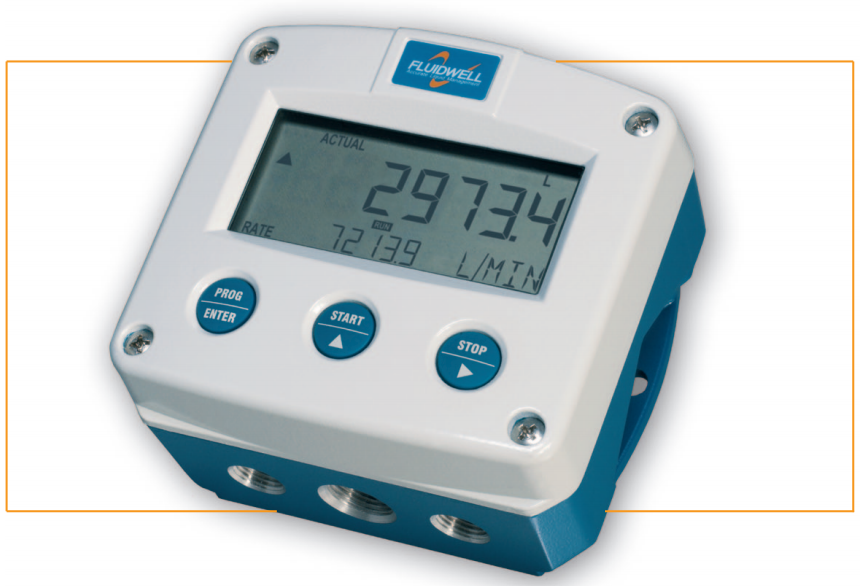

Batch controller with two stage control / pulse and analog output in relation to the flow rate

-------------------

Manufacturer: Fluidwell(USA)

Model:  F131 Series

            The F131 offers in addition to the standard functions an analog output signal in relation to the flow rate. The operator can enter a batch quantity easily or execute repeating batches.During the batch, the preset value is displayed as well as the batched (or remaining) quantity and the flow rate. The automatic self-learning overrun correction ensures an accurate result after each batch. A wide selection of options further enhances the capabilities of this model.

Features

• Large display shows preset value, running batch value and instantaneous flow rate.
• Self-learning overrun correction.
• Easy operation to enter a batch value and to control the process.
• Count-up and count-down function available.
• Selectable on-screen engineering units; volumetric or mass.
• Ability to process all types of flowmeter signals.

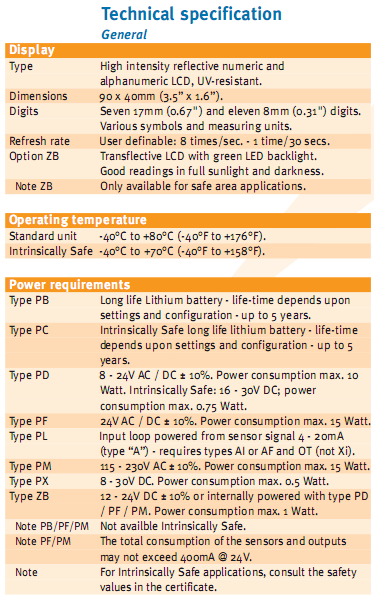

• Operational temperature -40°C up to +80°C   (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.

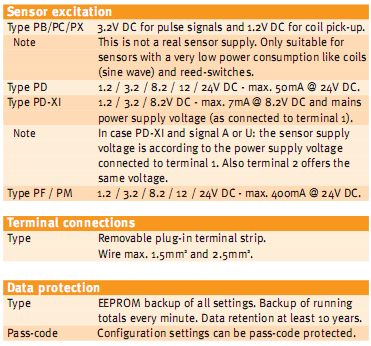

• Sensor supply 3.2 / 8.2 / 12 / 24V DC.

---------------------------------------------------
