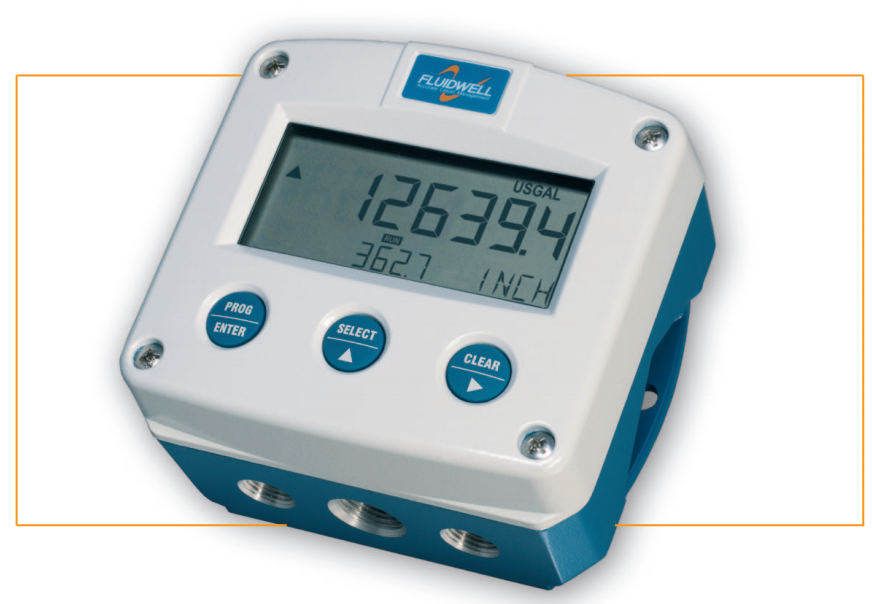

Level monitor with analog and high / low alarm output

-------------------

Manufacturer: Fluidwell(USA)

Model:  F170 Series

            The F170 is a versatile level indicator with continuous level monitoring feature. It offers the facility to set two low level and two high level alarm values. If desired, an ignore function can be set up to allow for an incorrect level for a certain period of time. Up to four outputs are available to transmit the alarm condition. A wide selection of options further enhances the capabilities of this model, including Intrinsic Safety and full Modbus communication

Features

• Displays level, percentage filled and height.
• 4 alarm values can be entered: low-low, low, high and high-high level alarm.
• Large 17mm (0.67") digits.
• Selectable on-screen engineering units; volumetric or mass.
• Operational temperature -40°C up to +80°C (-40°F up to 176°F).
• Very compact design for panel mount, wall mount or field mount applications.
• Rugged aluminum field mount enclosure IP67/NEMA4X.
• Intrinsically Safe - ATEX and IECEx approval for gas and dust applications.
• Explosion/flame proof  II 2 GD EEx d IIB T5.
• Alarm and analog signal outputs.
• Full Modbus communication RS232/485/TTL.
• Loop or battery powered, 8 - 24V AC/DC or 115 - 230V AC power supply.
• Sensor supply 3.2 / 8.2 / 12 / 24V DC

---------------------------------------------------
