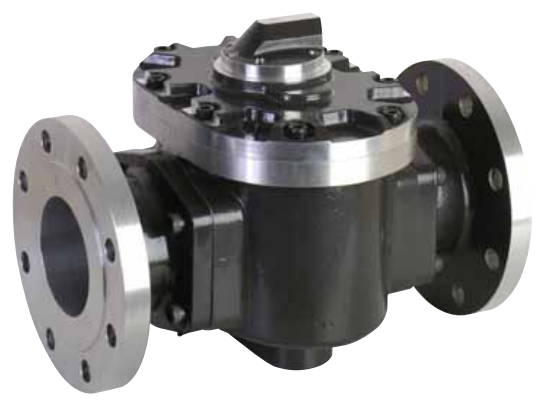

WM100 - 5" pulse meters
-------------------
Manufacturer: Macnaught(Australia)
Model: WM100 Series
Suitable for fuels, lubricants and corrosive fluids (stainless steel only) to a viscosity of 1000cPs, the M100 is a 100mm (4"), high flow, oval gear flowmeter and is capable of measuring fluid flows of up to 1200LPM. The M100 is accurate to +/- 0.5% and provides exceptional levels of reliability and durability.
Features
- Easy to read and operate, resettable LC display options available
- Flexibility of installation options (eg: can be mounted horizontally or vertically - no flow conditioning required
- Low pressure drop allows for economical pump selection or gravity flow applications
- Meter construction enables fast and easy on-site servicing without removal from application
- Meter accuracy is verified by a factory calibration check after which an individual metrology report is issued
- Meter design minimises the number of wearable and replaceable parts and extends product life
- Available with 4’ ANSI 150lb, JIS10K and DIN 16 flanges (modular construction) or 3’ screwed BSP (F) or NPT (F)
- LCD optional displays meet European CE directive
- Standard/deluxe displays/MR100 and pulse version have IP65/NEMA9 protection
- Intrinsically safe LC display options available.
- 12 month warranty
Specification:
| Model |
M100/WM100 |
| Meter Type |
Pulse / Standard LC Display / Deluxe LC Display |
| Meter Body Material |
Aluminium / Stainless Steel / Bronze |
Wetted Components:
Rotor Material
Shafts
O'ring |
Aluminium / Stainless Steel
316 Stainless Steel
NBR (Nitrile) |
Flow Rate Ranges
(Litres Per Minute/US Gallons Per Minute)
Above 5 cPs
Below 5 cPs |
120 To 1200 / 32 - 317
200 To 1200 / 53 - 317 |
| Accuracy- Within (Of Reading) |
+/- 0.5% |
| Repeatability |
0.03% |
| Maximum Viscosity (Of Standard Model) |
1000cPs ( > 1000 cPs Hi Vis Rotors Available) |
| Maximum Operating Pressure |
1200kpa/175psi/12bar |
| Pulser Type |
Hall Effect or Reed Switch
or Combination HE / RS |
| Pulses Per Litre/Us Gallon |
2.32 / 8.782 |
| Max. Operating Temperature |
AL 80°C/176°F St St 120°C / 248°F |
| Recommended Mesh Strainer Size |
40 |
---------------------------------------------------
