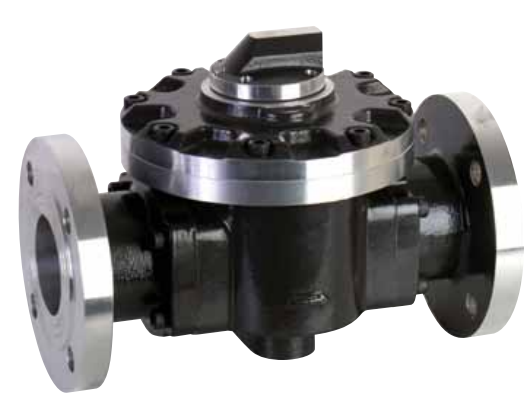

WM80 - 3" pulse meters
-------------------
Manufacturer: Macnaught(Australia)
Model: WM80 Series
The WM80 is a large capacity meter in the WM-SERIES™ range. It has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability.
Features
- Compact size.
- Two independent pulse units.
- Flexibility of installation options (e.g. can be mounted horizontally or vertically; no flow conditioning required).
- Low pressure drop allows for economical pump selection or gravity flow applications.
- Meter construction enables fast and easy on-site servicing without removal from application.
- Meter design minimises the number of wearable and replaceable parts and extends product life.
- Meter accuracy is verified by a factory calibration check after which an individual metrology report is issued.
- Both LC Displays meets European CE directive for EMC.
- Standard/Deluxe Displays and Pulse Version have IP65/NEMA9 protection.
- Intrinsically safe LC Deluxe and Standard Displays. Certificate of conformity number PTB Nr. Ex-93.C.4033x & Kema O5ATEX1168X
Specification:
| Model |
M80/WM80 |
| Meter Type |
Pulse / Standard LC Display / Deluxe LC Display |
| Meter Body Material |
Aluminium / Stainless Steel / Bronze |
Wetted Components:
Rotor Material
Shafts
O'ring |
Aluminium / Stainless Steel
316 Stainless Steel
NBR (Nitrile) |
Flow Rate Ranges
(Litres Per Minute/US Gallons Per Minute)
Above 5 cPs
Below 5 cPs |
20 To 733 / 5 To 194
66 To 700 / 17 To 185 |
| Accuracy- Within (Of Reading) |
+/- 0.5% |
| Repeatability |
0.03% |
| Maximum Viscosity (Of Standard Model) |
1000 Centipoise ( > 1000 Hi Vis Rotors Available) |
| Maximum Operating Pressure |
1200kpa/175psi/12bar |
| Pulser Type |
Hall Effect or Reed Switch
or Combination HE / RS |
| Pulses Per Litre/Us Gallon |
2.59 / 9.8 |
| Max. Operating Temperature |
AL 80°C / 176°F St St 120°C / 248°F |
| Recommended Mesh Strainer Size |
40 Mesh |
---------------------------------------------------
